KAYM 115 PXPRO TWINCLAMP AUTOMATIC PRESSURE REGULATION

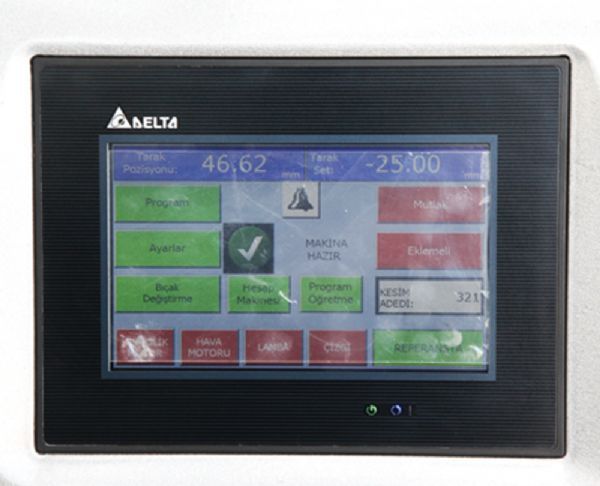

Digital Coordinate Measurement and Indicators (15'' LCD Coloured Touchscreen) • 1.000 programs x 65 program steps • 65.000 pcs. program position memory • Sortings programs in numeric and alphabetic • Manual/ Semi-Automatic/ Full-Automatic Operation Modes • Label Programming • Equal (endless) Division-Program • Memorization of Cutting-Position Program • Indicator of Cutting-Quantity • Backgauge controll in absolute and incremental system by program • Automatic backgauge orientation by forward-rearward buttons • Sensitive positioning of backgauge by hand-wheel • Calculator Function • Turkish, English and Arabic Language Packages • Pneumatic (Air Cushion) Table (easy movement capability) • Chrome Plated Table (stainless surface) • Table Light • Cutting Light Line function • Three-phase (380V / 50Hz) Electrical System • Lockable Main Switch • Servo Motor • Linear Guide • Precission-Ball Screw • Hydraulic Clamping, min-max. pressure adjustment • Gradual Pressure by foot pedal • Eccentric-Driven Cutting System • Double-Hand Button Security System • Knife Holder Safety Mechanism (Mechanical Lock) • Light Barrier Security Protection (Photocells) • Built-in Knife Lifting Device for quick change • The Backgauge Angulation and Skewness Removal System –Twin Clamp mechanism-Automatic presuure
regulation
Technical Data | KAYM 115 PXPRO | |
Cutting width | 1.150 mm | |
Feeding depth | 1.150 mm | |
Feeding height max. (without false plate) | 165 mm | |
Front table length (D) | 900 mm | |
Table Height | 900 mm | |
Min. & max. clamp pressure | 150/4.500 daN | |
Knife speed (by direct command) | 45 cycles / min. | |
Knife grinding reserve max. | 45 mm | |
Smallest cut without false plate, manual | 25 mm | |
Smallest cut with false plate, automatically | 85 mm | |
Power Supply | 5,5 Kw | |
Backgauge Power Supply | 0,75 Kw | |
BKnife Dimensions (length x width x thickness) | 1.400x140x13.75 mm | |
| Back Guage Speed Advance | 0-300 mm / sec. |
| Clamp | Twin Clamp |
| Pressure | Automatic Regulation |
| Noise Level | 77 db with 300 cuts |
| Cutting Accuracy | 1 / 100 mm |
Machine Dimensions | KAYM 115 PXPRO | |
Width with side tables (B) | 2.650 mm | |
Depth (A) | 2.570 mm | |
Depth frame (C) | 890 mm | |
Height frame (E) | 1.650 mm | |
Total weight (brut) | 3.000 kg |
